Changing the Oil in a Model A Ford

The Model A Ford is not equipped with an oil filter, which means that regular oil changes are critical for engine life.

Safety

• Appropriate eye protection for working under the car
• Ensure the engine is cool enough that the oil will not cause burns.

Required parts

• 4 quarts of 20w50 engine oil
• Replacement oil drain plug washer
• Additive for lead-burning engines, if desired

Tools

• Ratchet

• 15/16" socket

  The Model A drain plug is slightly recessed, so a socket is preferred over a wrench for removal.

• Funnel

• Oil drain pan

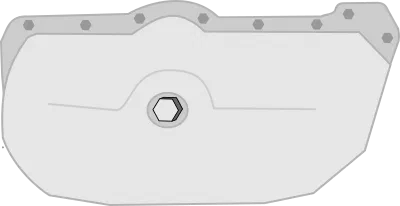

The oil pan is located at the bottom of the engine. The drain plug is on the right (passenger’s side) of the oil pan.

Changing the Oil

1. With the engine warm, but not hot, climb under the car and place the oil drain pan below the oil drain plug.

2. Using the socket, remove the plug.

3. Allow the oil to drain completely.

4. Replace the fiber washer on the plug with a new washer.

5. When the oil stops draining, replace the plug.

   Be sure not to overtighten.

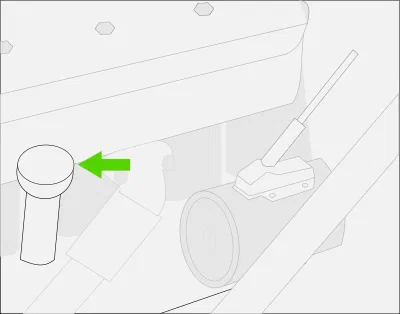

6. Remove the oil filler cap from the engine.



7. Using the funnel, pour oil into the filler neck.

8. Check the dipstick to ensure that sufficient oil is in the engine for safe operation. If low, add more.

9. Replace the oil filler cap.

10. Safely dispose of used oil.
